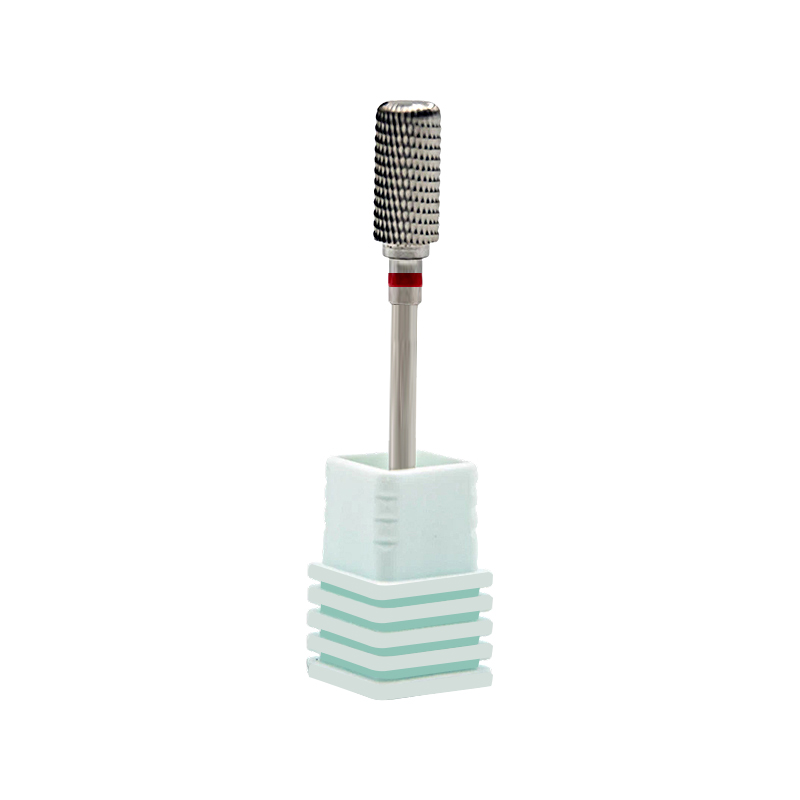

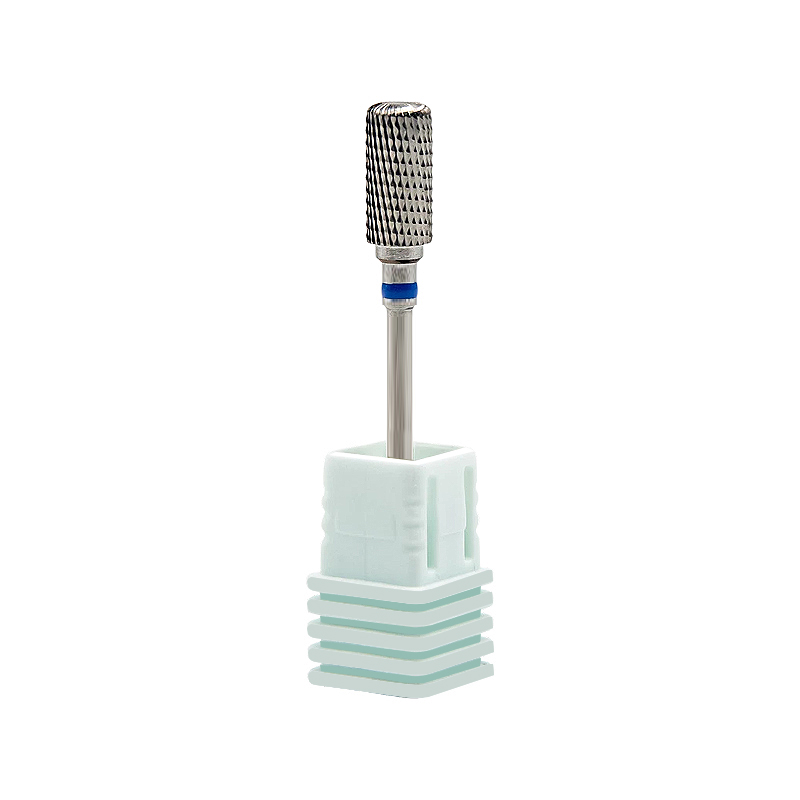

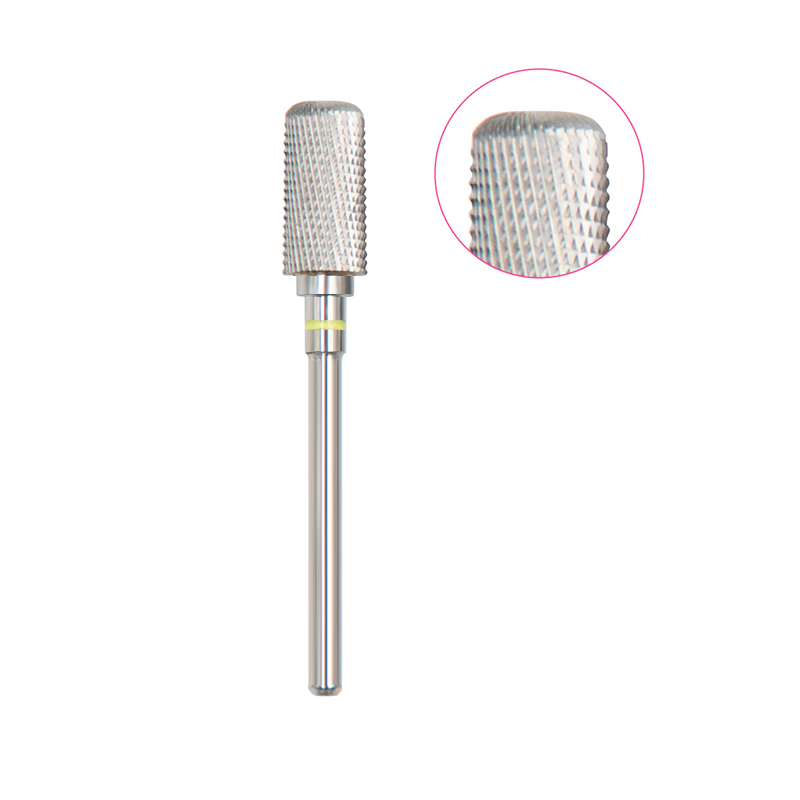

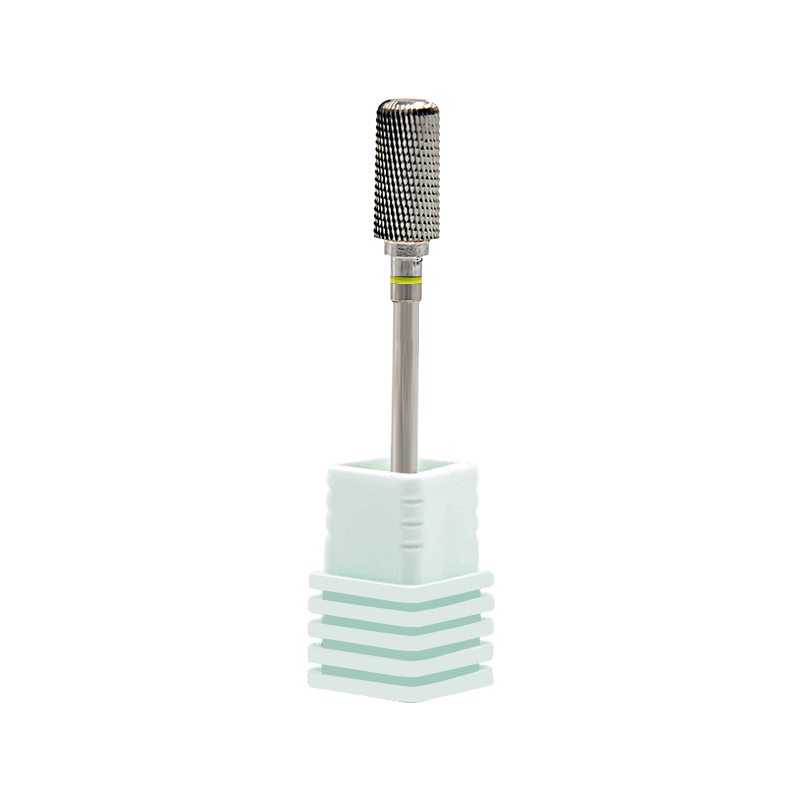

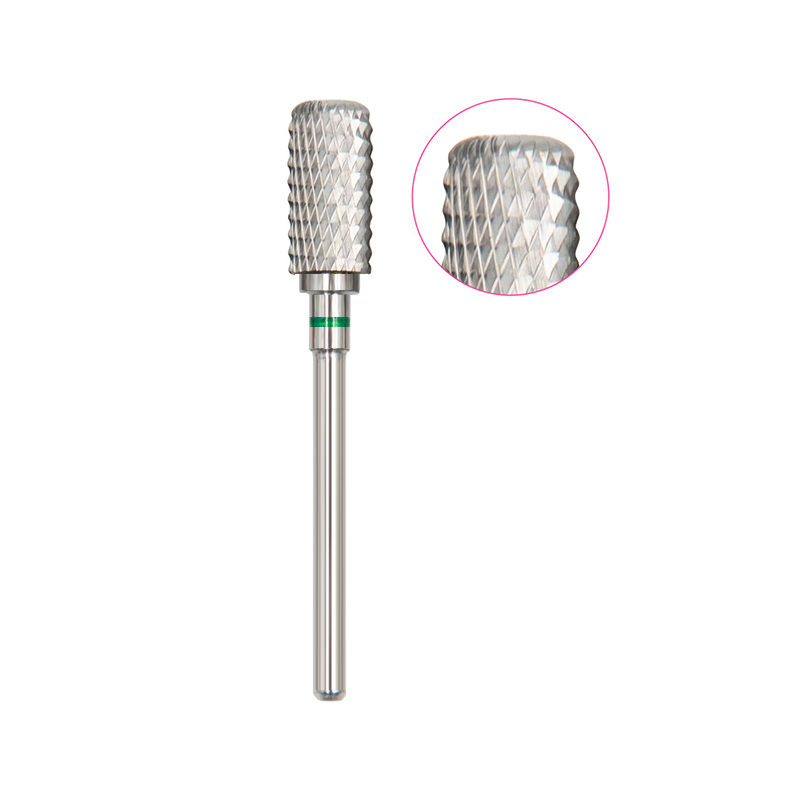

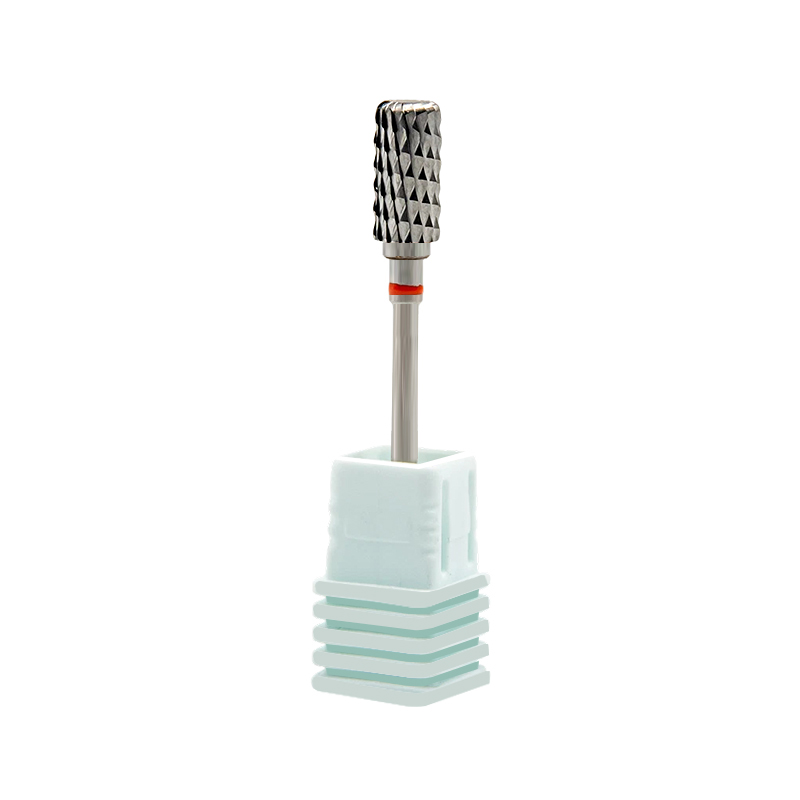

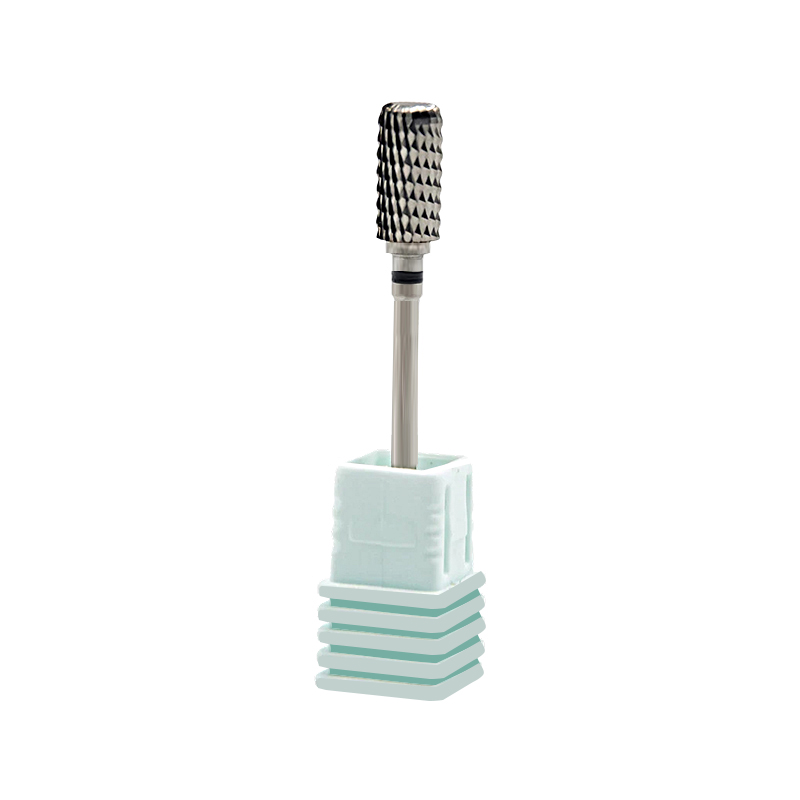

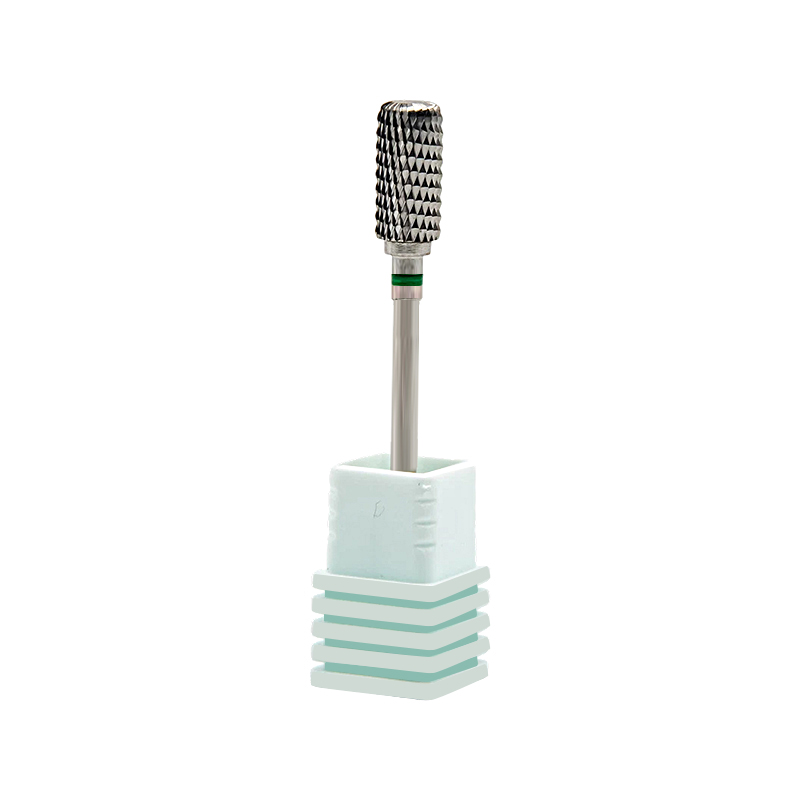

Dust-Proof Carbide Nail Drill Bit

AR0613BD4S

Consultation

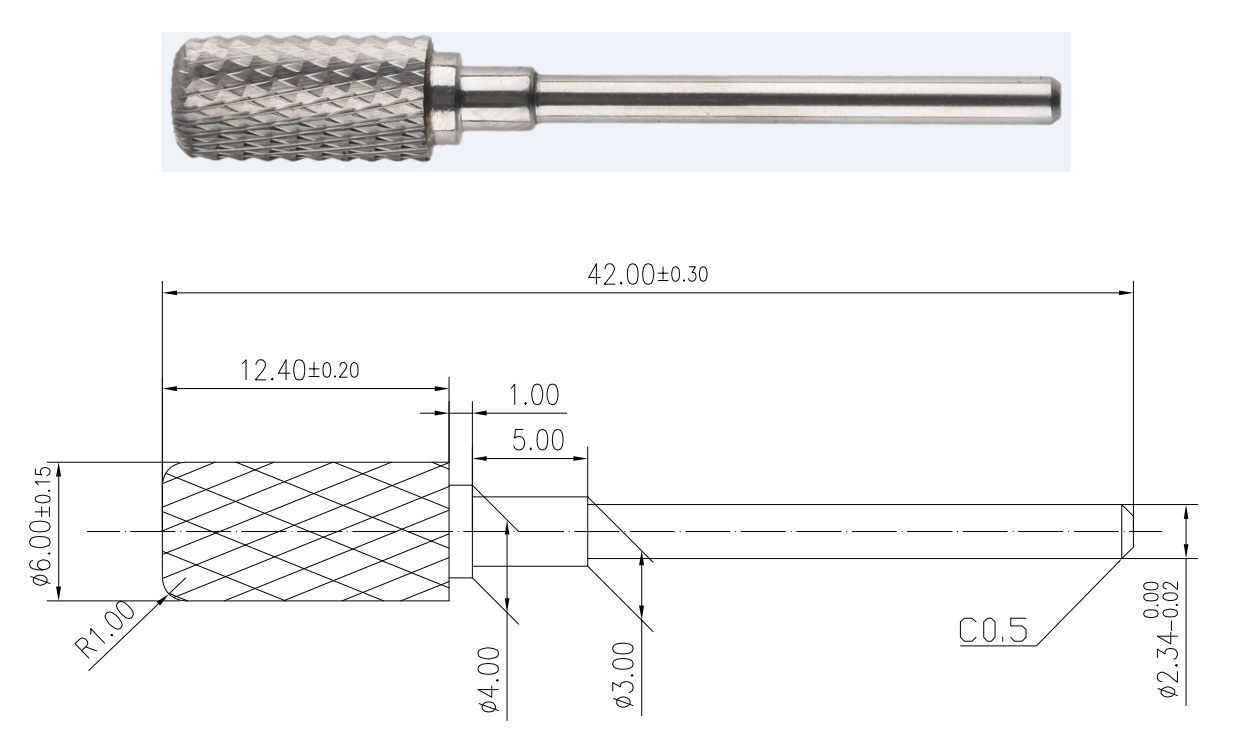

Features Technical Indicators Overall Dimension

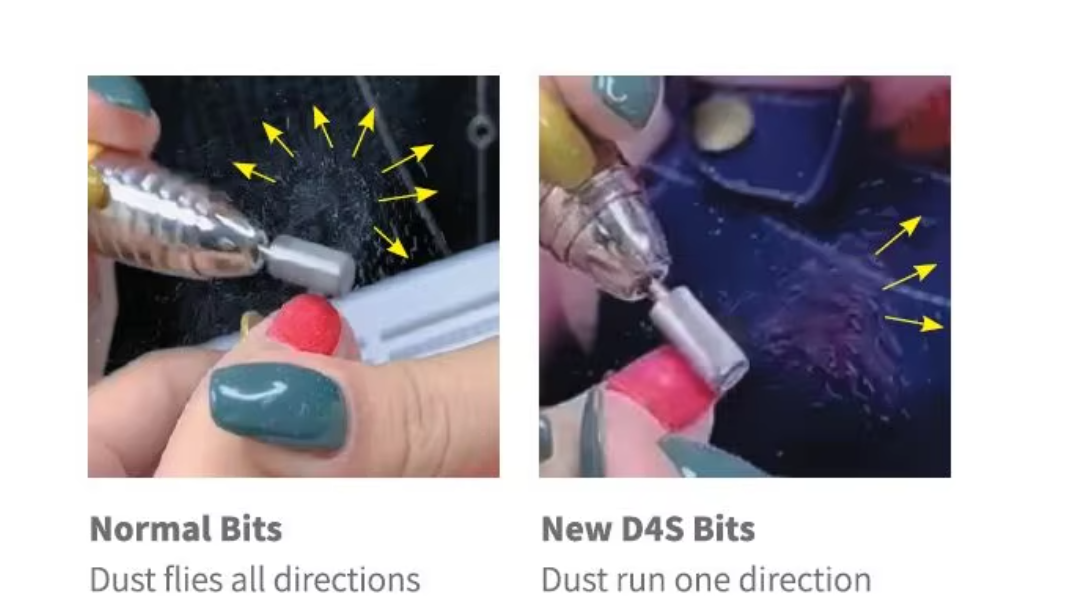

(1)CLEAN ! Chips run towards one direction.
(2)SAFE !Shaft of bit goes inside the collet instead of beingpulled out
(3)Extra Function ! With teeth on radius rim
(4)No Hurt ! Radius rim, no sharp edge, no hurt
(5)Stable !Sharp, stable and durable at high RPM
ltem code: AR0613-D4S
Shape: Cylinder
Shank Material: Steel
Head Size: 6x12.5mm
Shank Size: 3/32"=2.35mm or 1/8"=3.17mm both available
Flute: 5-Axis CNC grinding Machine made, D4 CutCoarseness: XF,F,M,C,XC,2XC,3xC, full option

Part Number	D1	D2	D3	L1	L2	L3	RZ	LZ	a	Q1	Q2	h	R1
AR0613B-D4S-XXF	6	2.34	4	42	12.4	1	36	24
AR0613B-D4S-XF	6	2.34	4	42	12.4	1	32	30
AR0613B-D4S-F	6	2.34	4	42	12.4	1	28	26
AR0613B-D4S-M	6	2.34	4	42	12.4	1	24	22
AR0613B-D4S-C	6	2.34	4	42	12.4	1	20	18
AR0613B-D4S-XC	6	2.34	4	42	12.4	1	16	14
AR0613B-D4S-2XC	6	2.34	4	42	12.4	1	12	10
AR0613B-D4S-3XC	6	2.34	4	42	12.4	1	10	8
